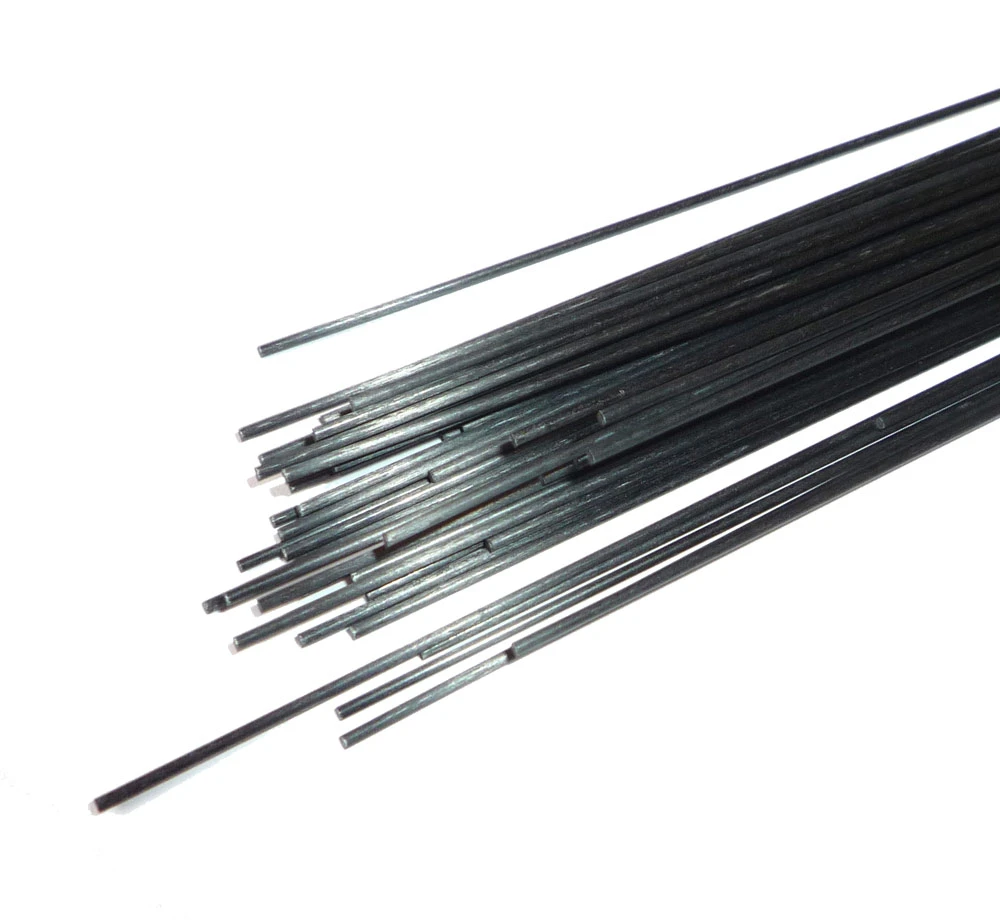

0.5mm Carbon Rod

0.5 mm diameter high modulus carbon fiber rod available in various lengths. These pultruded carbon rods have a high fiber content of high modulus carbon in an epoxy matrix, making them extremely rigid and strong.

Select the required length using the radio buttons below the price.

0.5 mm Carbon Fiber Rod Specification
Diameter	0.5 mm
Weight per m	0.4 g per meter
Length	See the options below the price
Structural material	T300 carbon fibers
Matrix	Epoxy resin
Carbon content	Approx. 60%
Youngs Modulus	230 GPa
Ultimate tensile strength	1600-2300 mPa
Fibre density	1.4 – 1.8 g/cm3
Resin glass transition Tg	170º C
Packing type	Bendy-sent coiled in a pizza box if not ordered with something rigid

Postal Charges

England, Wales & Scottish Lowlands
If ordered with other bendy or small things 75 cm and 150 cm items will be delivered rolled up in a hoop in a pizza box. They will straighten out once unpacked. Open with care. If ordered with 75 cm rigid carbon items the bendy items will be cut down to 75 cm and sent by Royal Mail. If ordered with 150 cm long items they will be sent full length by courier.

UK Islands, NI & Scottish Highlands
If ordered with other bendy or small things the items will be delivered rolled up in a hoop in a pizza box. They will straighten out once unpacked. Open with care. If ordered with rigid carbon items all items will be cut down to 75 cm length and sent by Royal Mail unless this postal charge is added to the basket.

Europe and Rest of the World
If ordered with other bendy or small things 75 cm and 150 cm items will be delivered rolled up in a hoop in a pizza box. They will straighten out once unpacked. Open with care. If ordered with 75 cm rigid carbon items the bendy items will be cut down to 75 cm and sent by Airmail post. If ordered with 150 cm long items they will be sent full length by courier.

If even numbers of 75 cm long items are ordered we reserve the right to send half the number of 150 cm items to simplify packing.
