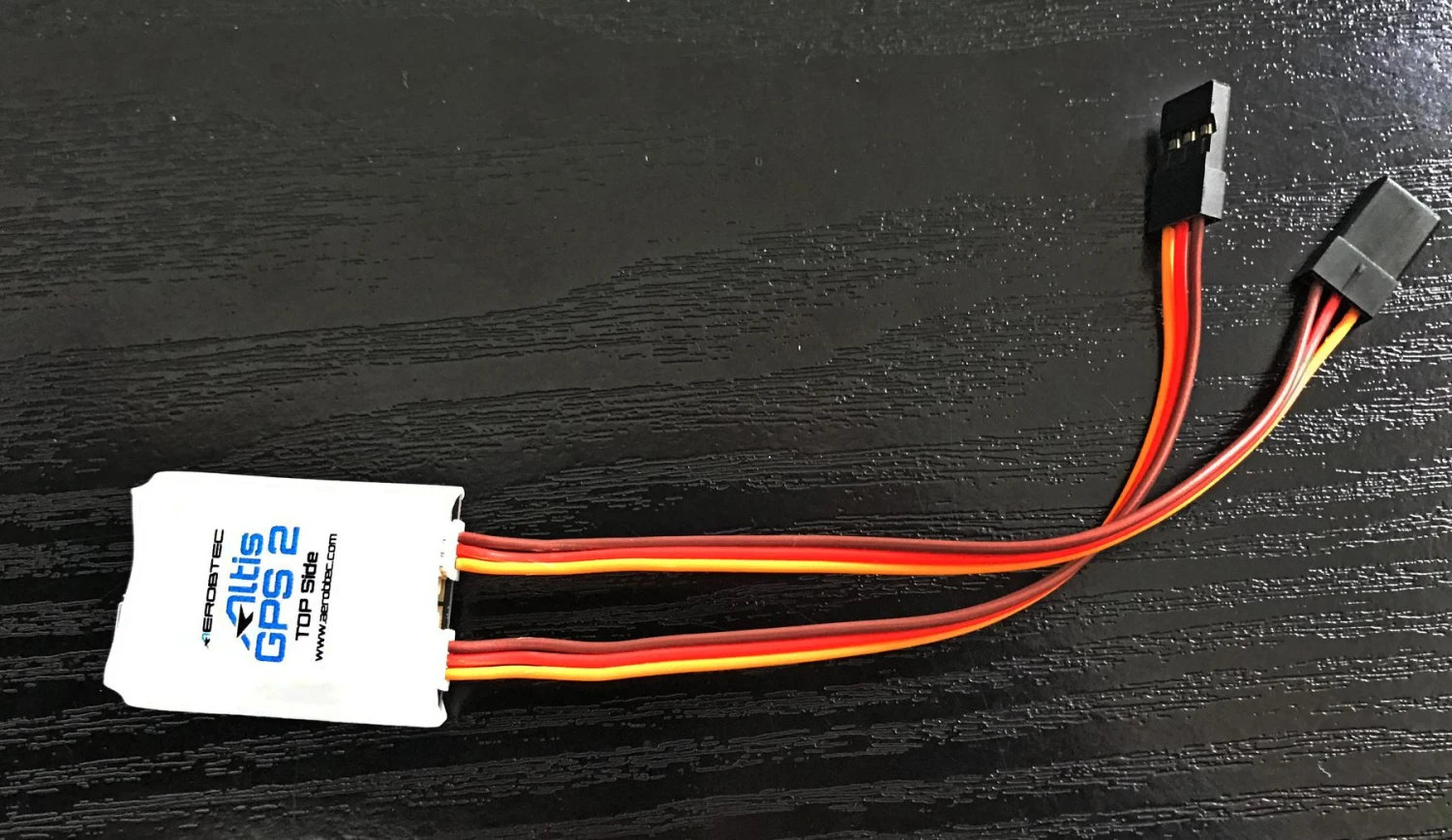

Altis GPS 2

The new improved Aerobtec Altis GPS2 logs GPS coordinates, ground speed, barometric pressure altitude, and RC input, allowing the 3D position and speed of a model to later be displayed on a computer. As the barometric pressure altitude is much more accurate than GPS height info this device is much better than most loggers for model aircraft use. Additionally it acts as a telemetry sensor for supported RC, allowing a real-time display of this info on the user’s transmitter.

The improvements of this GPS2 over the previous version are faster satellite acquisition start time, improved reception and double the memory.

It also has support for Jeti, Multiplex, Graupner, Futaba SBUS2* and FrSky S.Port* telemetry, allowing the RC pilot to receive real-time data via his transmitter. *Note Futaba SBUS2 and FrSky S.Port both need the optional telemetry convertor.

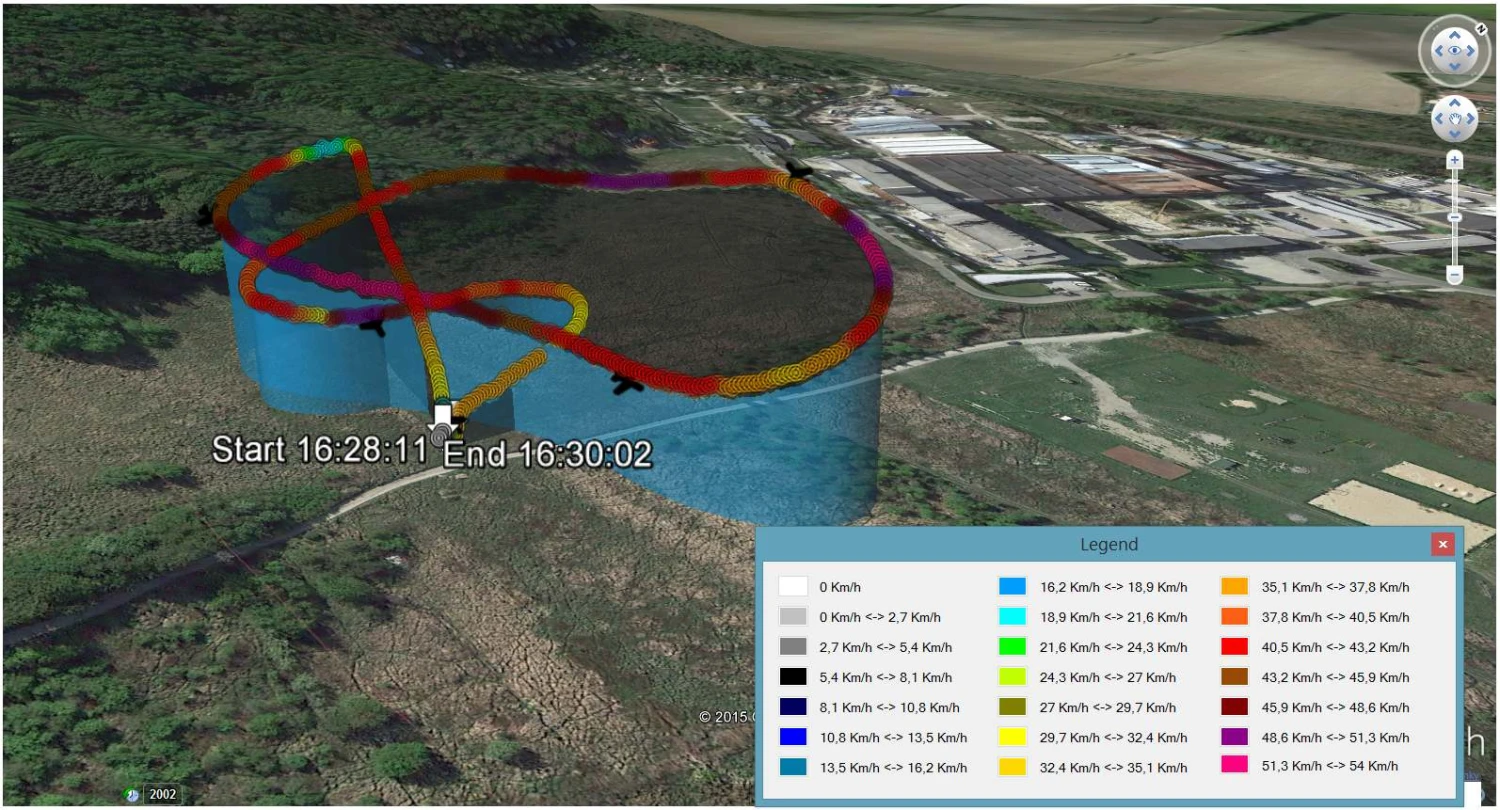

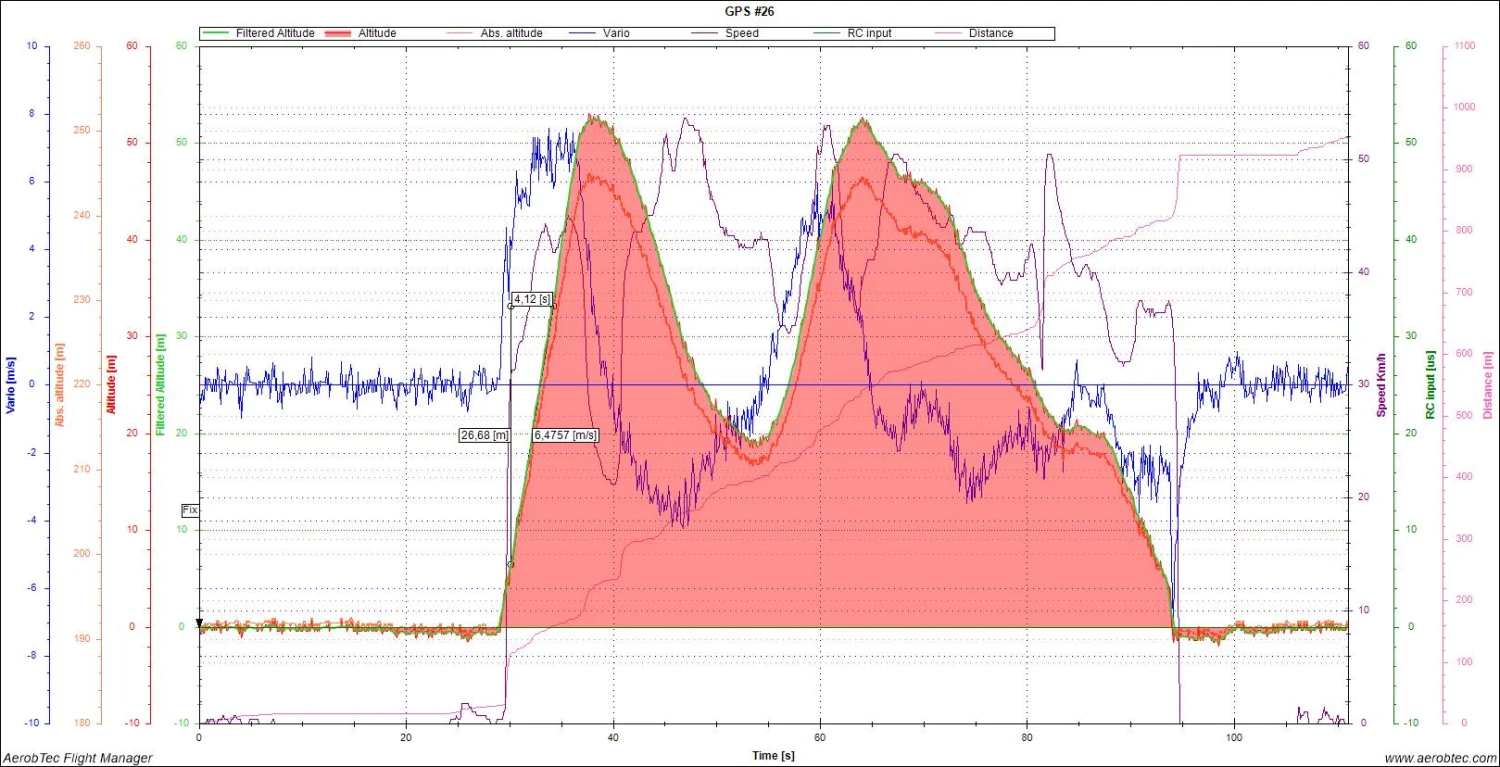

The unit has very small dimensions and a low weight. Recorded flights can be analyzed in Altis Flight Manager PC application which allows users to view the data in graph view mode and in Map/Earth mode.

• Memory: 8Mb (approx. 18 hours recording with 0.1s sampling)
• Sample time: 0.1 – 25.5s (user selectable with step 0.1s)
• Dimensions: 30 x 23 x 9 mm
• Weight: 12g
• Power supply range: 4V – 12.6V
• Integrated pressure sensor for altitude measurements
• Logs GPS coordinates, ground speed, pressure altitude, RC input
• Telemetry support for Jeti model®, Multiplex® M-Link, Graupner® HOTT, Futaba® SBUS2*, FrSky® S.Port*
• Upgradeable firmware
• Integrated USB port for connection to PC
• Free Altis Flight Manager software for Windows analysis software
