Axi 2212/12 V2 Long 1950 RPM/V 59g Outrunner

You will be surprised by the very high power delivered by these small and very robust, but light weight (59g with power cables) brushless motors with rotating case suitable for all models of Slow and Park Fly size weight up to 650 g. The hardened steel 3,17mm diameter shaft is supported by two large ball bearings which ensure very good mechanical reliability with front or radial mounting. As a result of using the latest ferromagnetic materials the AXI 22xx/xx V2 motors offer extremely high efficiency and high load capability for their weight.

No. of cells 2-3s Li-Poly
Kv 1950 RPM/V
Max. efficiency 84%
Max. efficiency current 14 – 22 A (>75%)
No load current 1,2 A
Current capacity 30 A/60 s
Internal Resistance 26 mohm

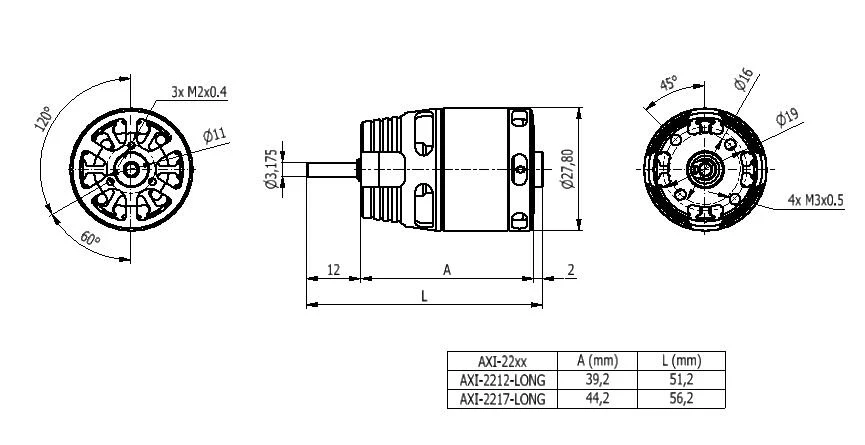

Dimensions (Ø x L) 27,7×39,4 mm
Shaft diameter 3,17 mm
Weight 59,r g
Max. Power 300 W
