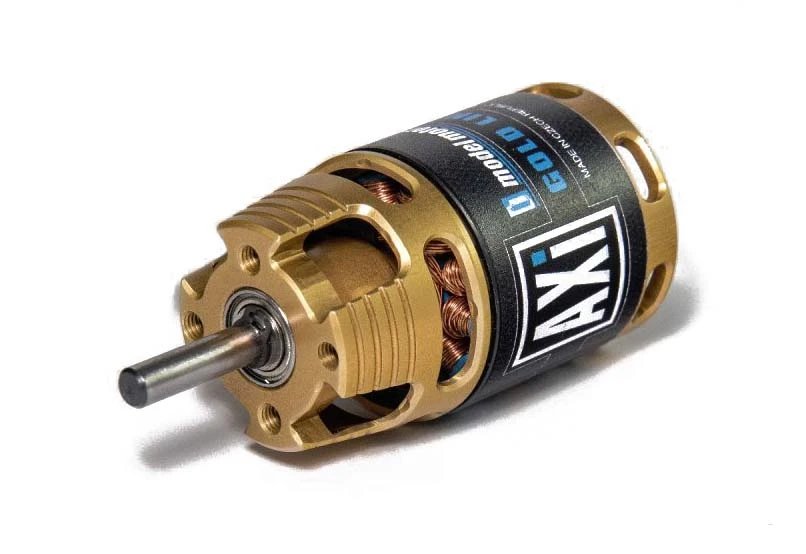

Axi 2217/16 V2 Long F5J 1050 RPM/V 84g Outrunner

The high quality and performance of AXI 2217 V2 motors meant that they were a perfect base for development of the new AXI 2217/16 GOLD LINE. New small and powerfull motor AXI 2217/16 GOLD LINE V2 with rotating case is suitable for aerobatic models up to 700g and for light sailplanes up to 1000g. Hardened steel Shaft have 4mm diameter and is supported by two large ball bearings wich ensure very good mechanical stability.

Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market

The Axi 2217/16 V2 Long F5J is the same as the Axi 2217/16 V2 Long motor but with a 4 mm shaft instead of a 3.17 mm shaft to better withstand F5J dork landings.

Axi 2217/16 V2 Long F5J TECHNICAL SPECIFICATION
No. of cells 2-3s Li-Poly
Kv 1050 RPM/V
Max. efficiency 85%
Max. efficiency current 10 – 18 A (>75%)
No load current 0,4 A
Current capacity 24 A/60s
Internal Resistance 120 mohm

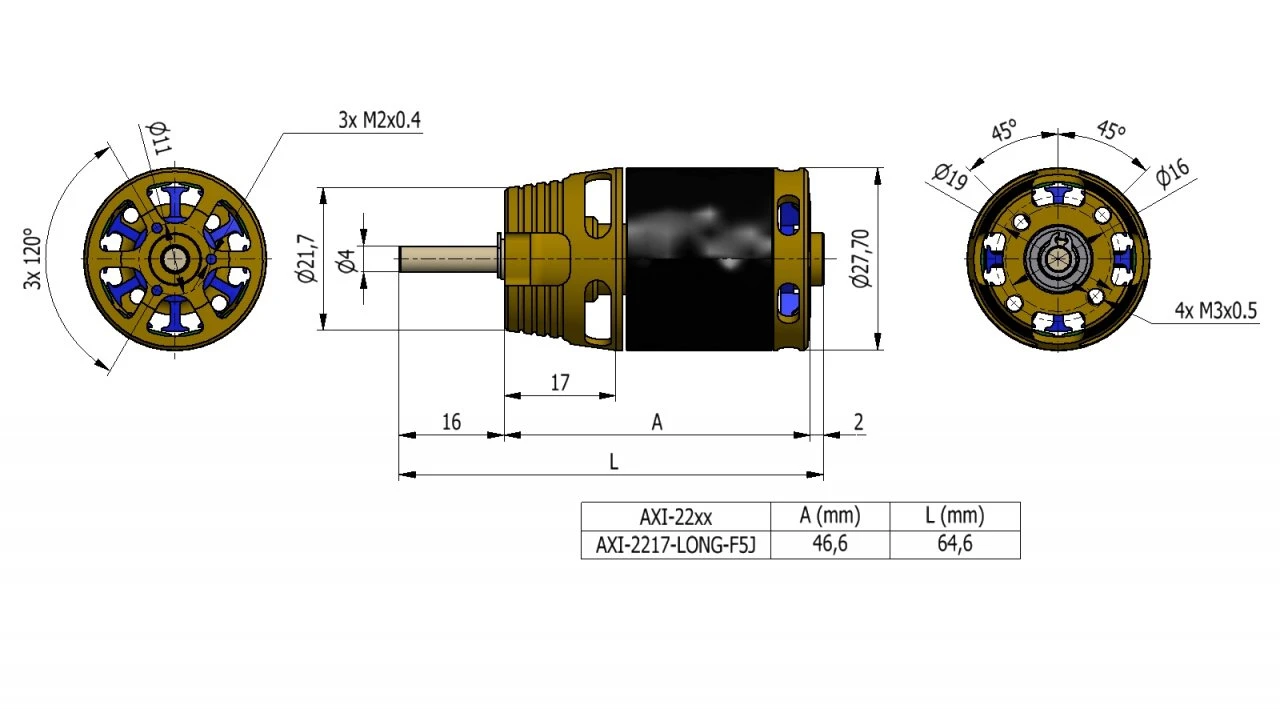

Dimensions (Ø x L) 27,7 x 64,6 mm
Shaft diameter 4 mm
Weight 84 g
Max. Power 245 W
