Mega 16/15/2 4200 RPM/V 77g Inrunner - Image 2

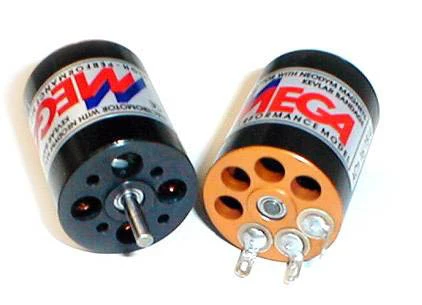

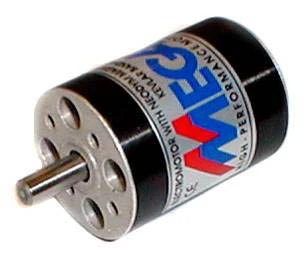

Mega 16/15/2 4200 RPM/V 77g Inrunner

Original price was: £79.49.Current price is: £55.64.

SKU: MEGA-16-15-2 Categories: Direct Drive, Powertrains

Top-Notch Quality
Unbeatable Quality Guaranteed
Protecting Your Payment Information
Product guarantee 100% satisfaction

Description
Reviews (0)

The Mega 16/15/2 Brushless Motor is a Speed 400 sized brushless motor that is powerful, efficient and reliable. Highly recommended for pylon racers.

Hardened steel shaft, diameter 3.2 mm.
Two precise ball bearings
Dynamically balanced
Neodymium magnet rotor
Handmade stator, lightweight rotor allows high revolution.
Kevlar bandage rotor
Motor mount has 2 holes on a 16mm diameter and 2 on a 19mm diameter, all M3 threaded
Efficiency up to 88%

Mega 16/15/2 Specifications
Motor name	Mega 16/15/2	inrunner
Motor weight	77.0 g	2.72 oz
Motor diameter	28.0 mm	1.10 in
Motor length	36.0 mm	1.42 in
Lead length	0.0 cm	0.00 in
Shaft diameter	3.2 mm	0.125 in
Mounting info	2 M3 holes on 16mm & 2 on 19mm diameter
Estimated Rm	12 mR
Estimated Kv	4200 RPM/V
Estimated Io	3.00 A @ 10 V
Max efficiency (10 V)	88 % @ 50.0 A
Operating effic’y (10 V)	88 % @ 50.0 A
Motor Km	20.8 Nm/W^.5 X1000
Motor Km/Kg	270 Nm/(W^.5 Kg)
Recommended battery	3S LiPo
Rec max LiPo capacity	1.5 Ah
Supplied accessories	None

3S LiPo Performance
Recommended prop	4.5×4.5
Input power	500 W on 4.5×4.5 prop
Current	50.0 A on 4.5×4.5 prop
