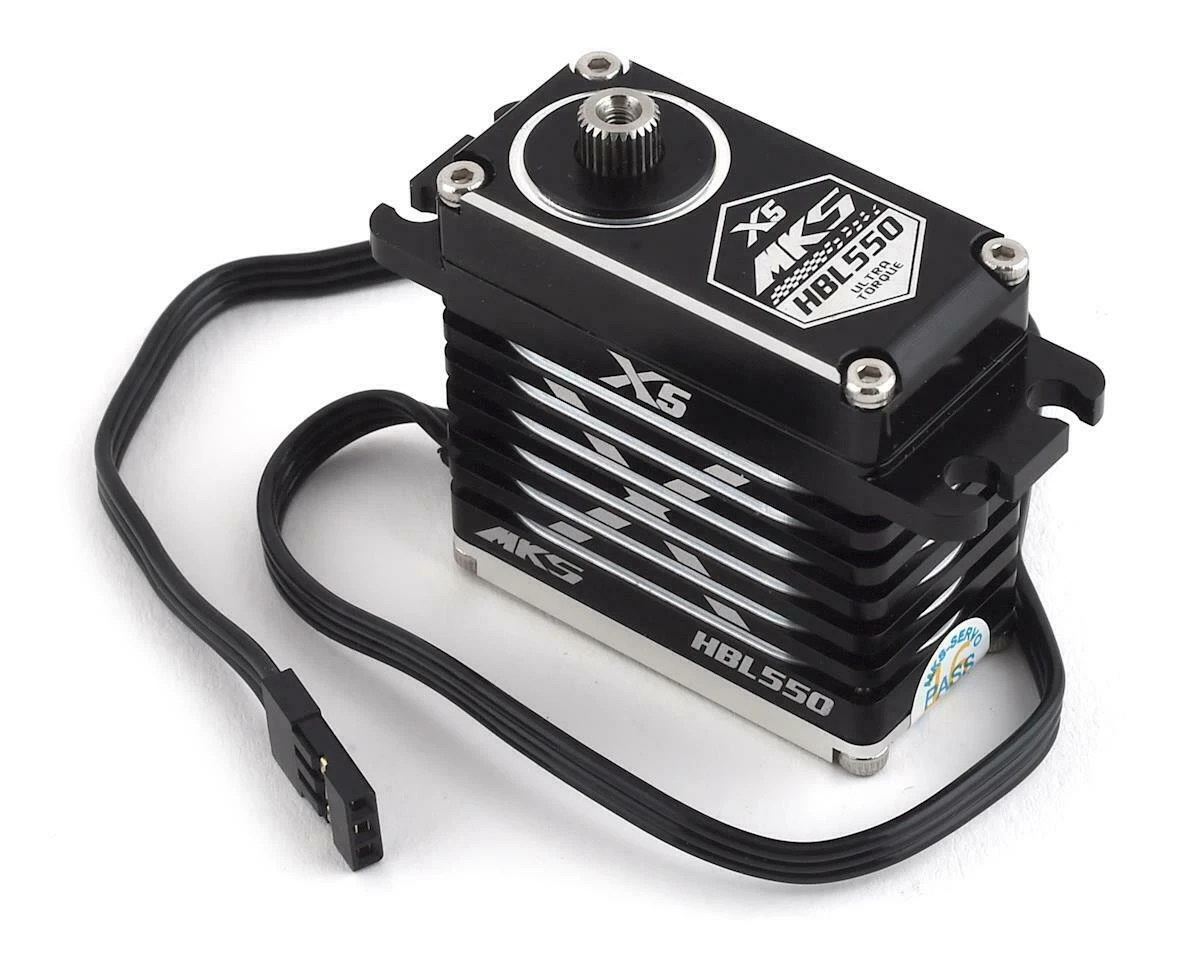

MKS HBL550 Servo – 39Kg.cm 0.08s 79g 20mm

PURCHASED TO ORDER.

MKS X5 HBL550 Brushless Servo. Available to special order

Specifications:

Torque:
@6.0V: 29 Kg.cm – 402 oz-in
@7.4V: 36 Kg.cm – 499 oz-in
@8.4V: 39 Kg.cm – 527 oz-in

Speed:
@6.0V: 0.117 s
@7.4V: 0.094 s
@8.4V: 0.085 s

Weight: 79.5 g

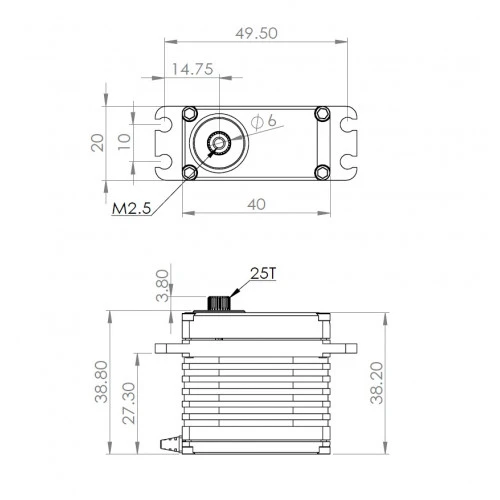

Dimension: 40x20x38.5mm
Working Voltage: 3.5 ~ 8.4 V (2S LiPo unregulated)
Working frequency: 1520µs / 333Hz
Dead Band: 0.001 ms (Default)
Bearing: 2BB
Motor: Brushless Motor
Gear: Alloy gear
