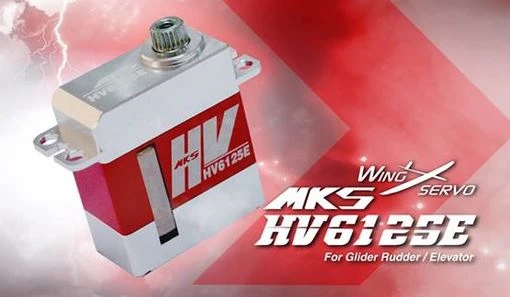

MKS HV6125E Servo – 3.5Kg.cm 0.05s 19.9g 12mm

The new MKS-HV6125E is primarily designed as a glider tail servo, with excellent speed, brilliant resolution, and NO free play. It perfectly complements the HBL6625 HV wing servo – but the HV6125e can also be useful for wings, where the fantastic speed will be appreciated. Also great for heli cyclic and tail rotor use.

• High Voltage: 6.0 – 8.4V
• Ultra-High Resolution
• All Aluminium Alloy CNC Case
• Coreless Motor
• Fast
• Negligible Backlash

The MKS hallmark CNC aluminium alloy case adds rigidity and crash resistance to the servo. The gears are pre-loaded to remove all slop or backlash from the geartrain, allowing a level of precision unequalled by other manufacturers.

MKS HV6125E Servo Specifications

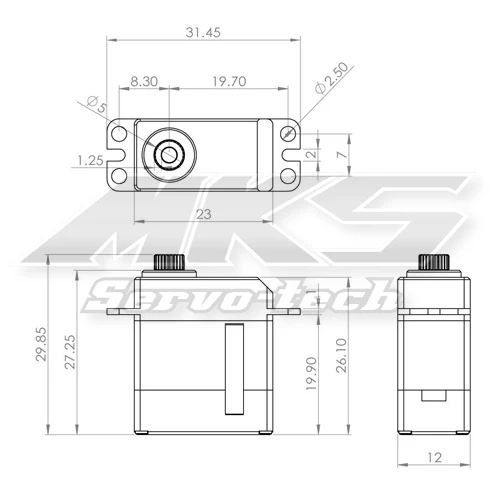

Body dimensions	23.0 mm wide x 12.0 mm thick x 27.3 mm high	0.91″ wide x 0.47″ thick x 1.07″ high
Max dimensions	31.5 mm wide x 12.0 mm thick x 29.9 mm high	1.24″ wide x 0.47″ thick x 1.18″ high
Stall torque (6V)	2.3 Kg.cm	32 oz.in
Stall torque (7.4V)	3 Kg.cm	42 oz.in
Stall torque (8.2V)	3.5 Kg.cm	49 oz.in
Weight	19.86 g	0.70 oz
Lead length	22 cm	8.7 in
Operating speed (6V)	0.07 sec/60°
Operating speed (7.4V)	0.06 sec/60°
Operating speed (8.2V)	0.05 sec/60°
Operating voltage	6V to 8.2V
Operating temperature	-10 to 50 °C
Bearings	2 ball bearings
Gear material	Chrome-titanium alloy
Case material	Aluminium alloy
Motor type	Coreless motor
Working frequency	333 Hz
Dead band/resolution	0.8 µs
Pulse width for ± 60º	µs
Digital	Yes
Programmable	No
Position feedback	Direct drive potentiometer
Supplied accessories	2 plastic output arms, 2 arm retaining screws, 2 mounting screws
Optional accessories	MKS Short Metal Servo Output Arms, MKS Long Metal Servo Output Arms
