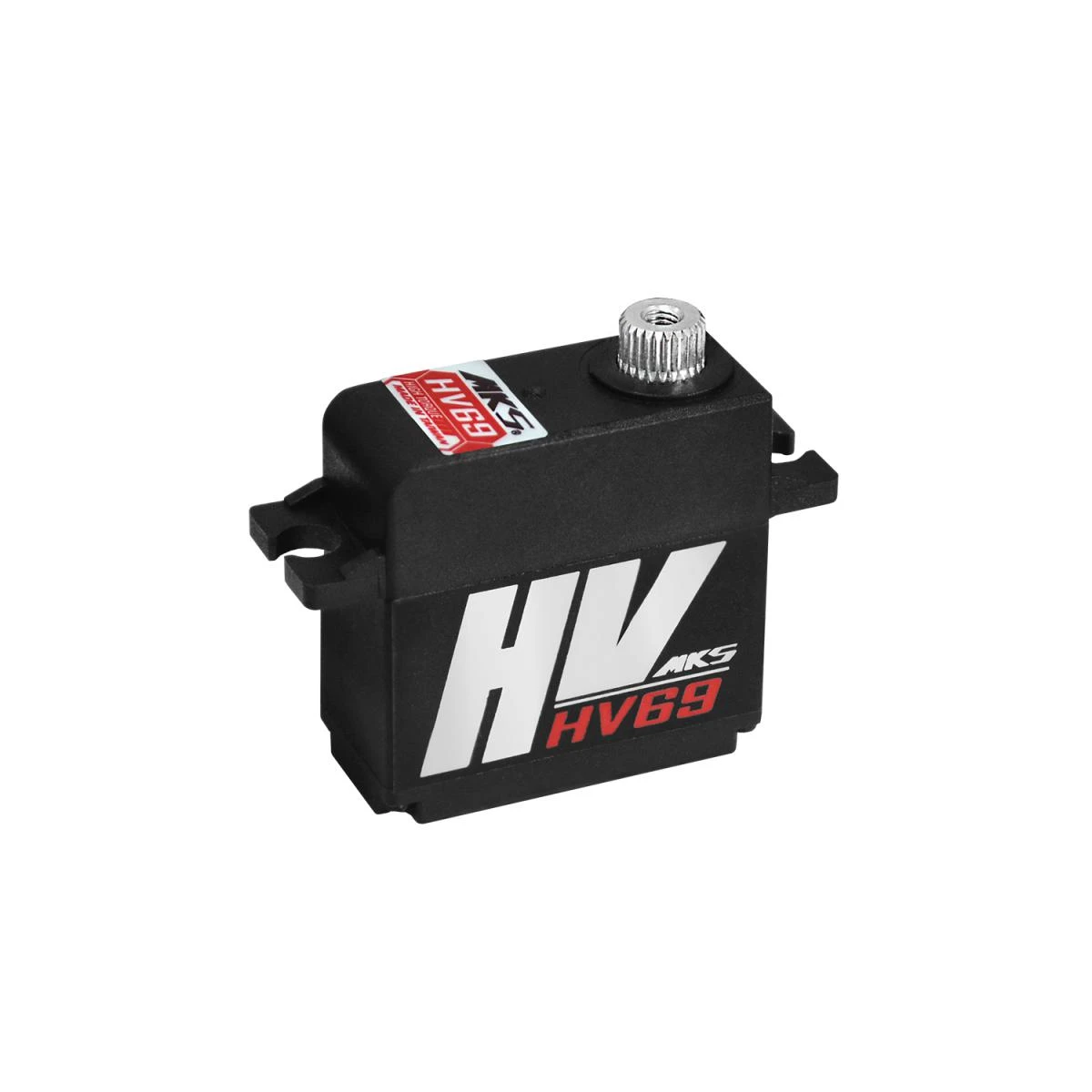

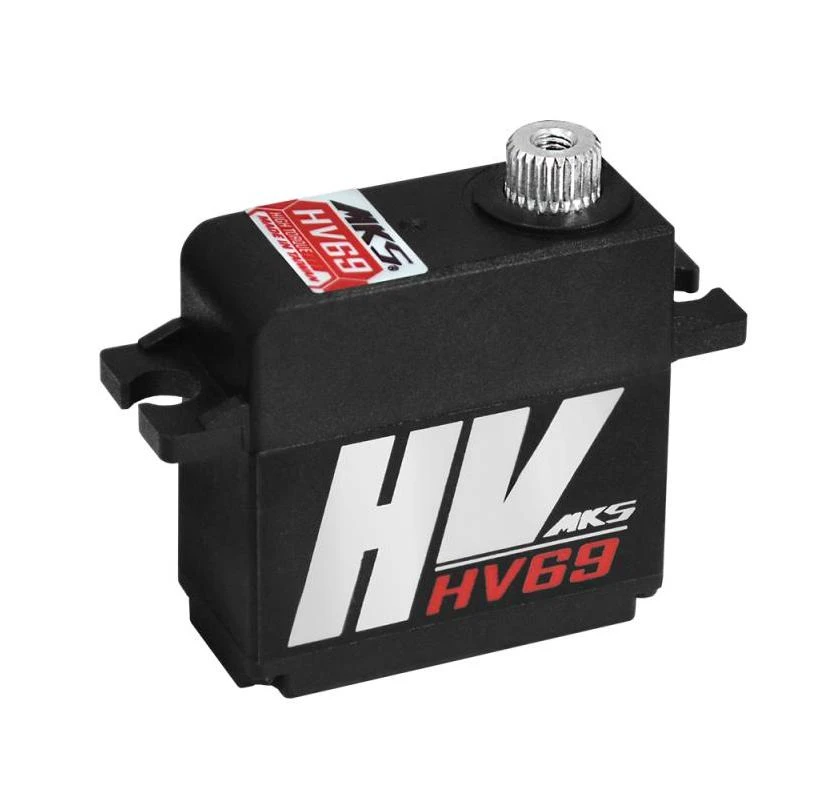

MKS HV69 Servo – 10.2Kg.cm 0.10s 21.0g 13mm

The MKS HV69 servo is a well priced high performance servo with excellent torque and speed. At 13 mm thick it is suitable for mounting in the fuselage or in thicker wings and tails.

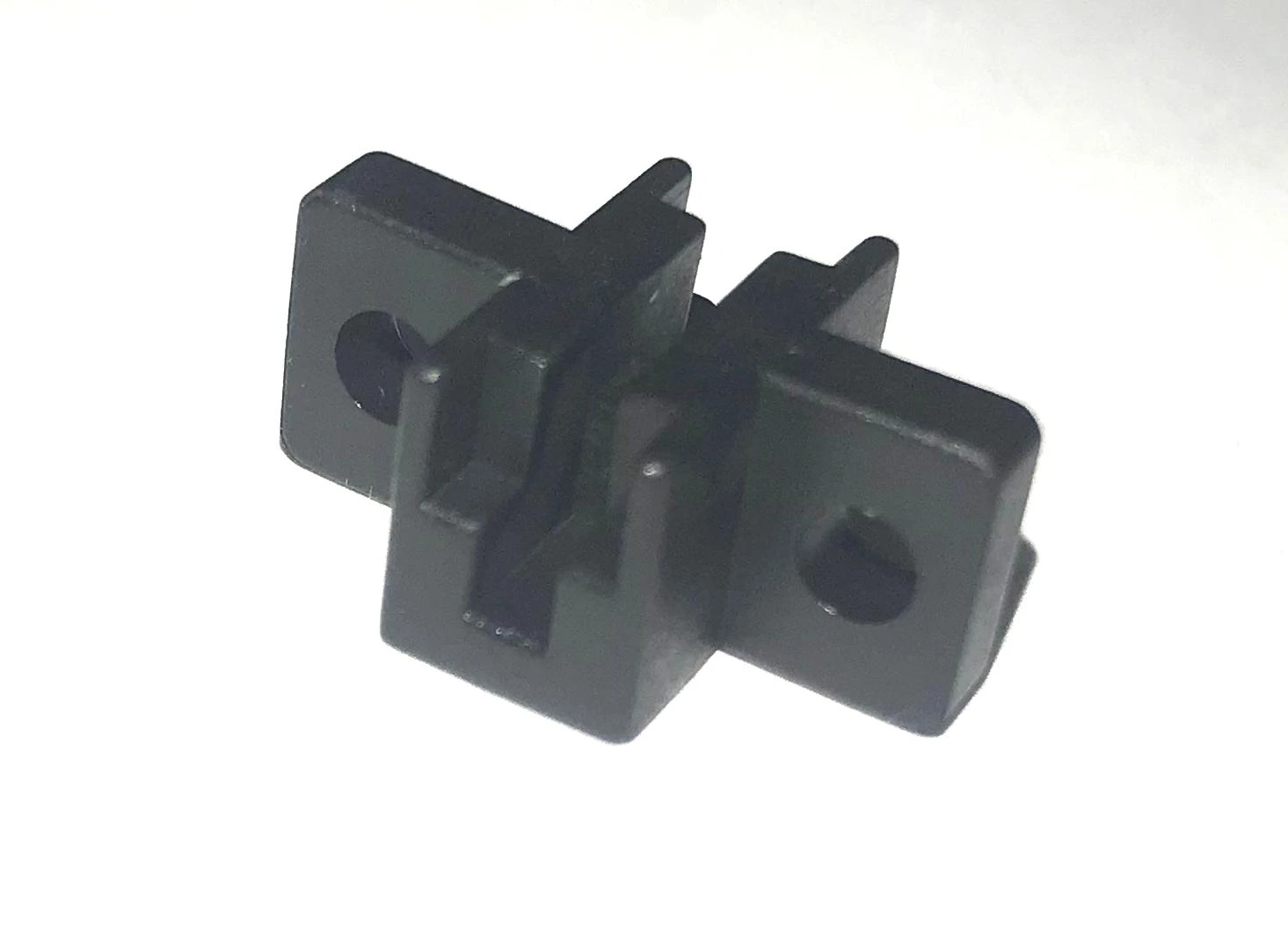

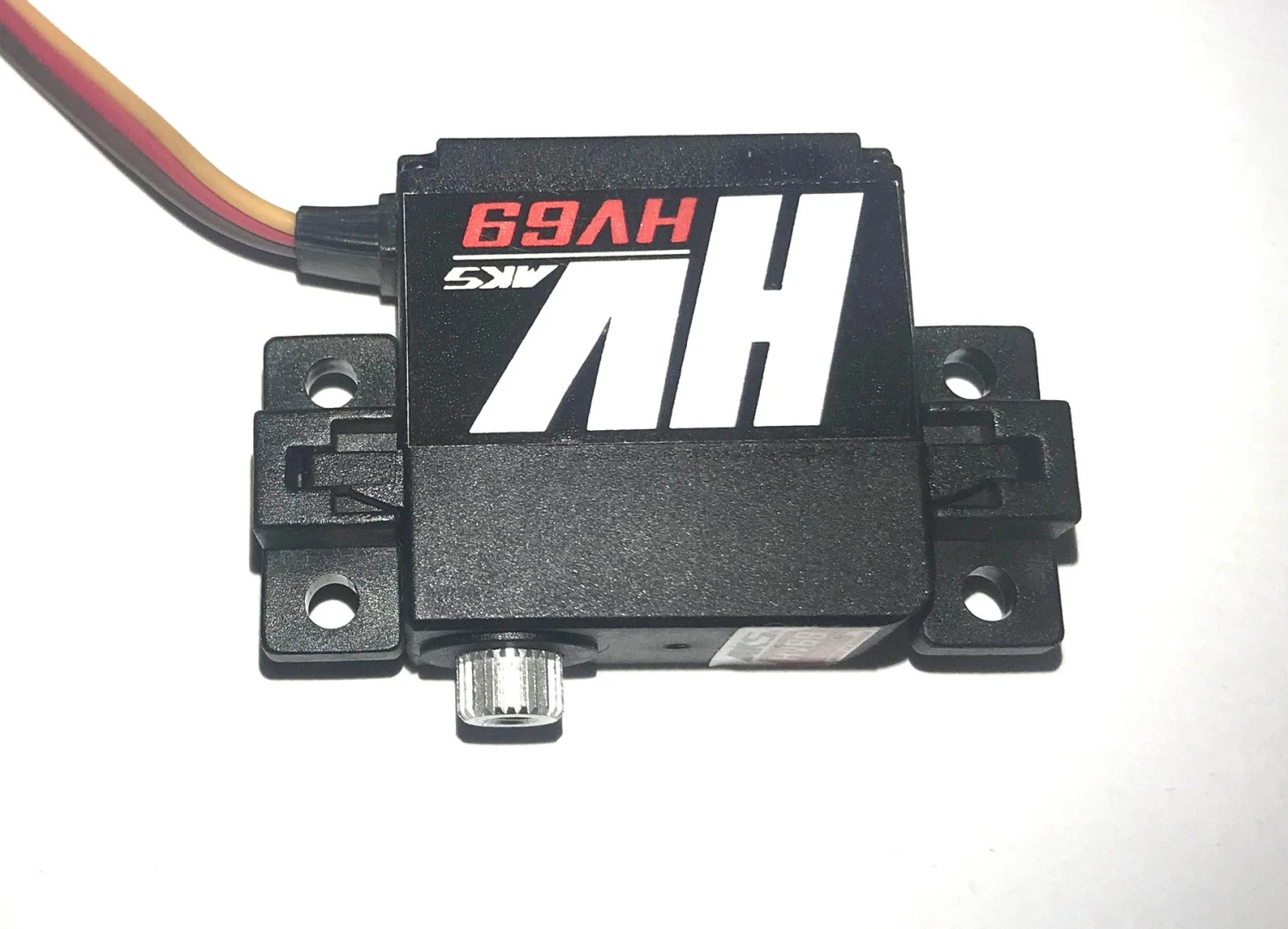

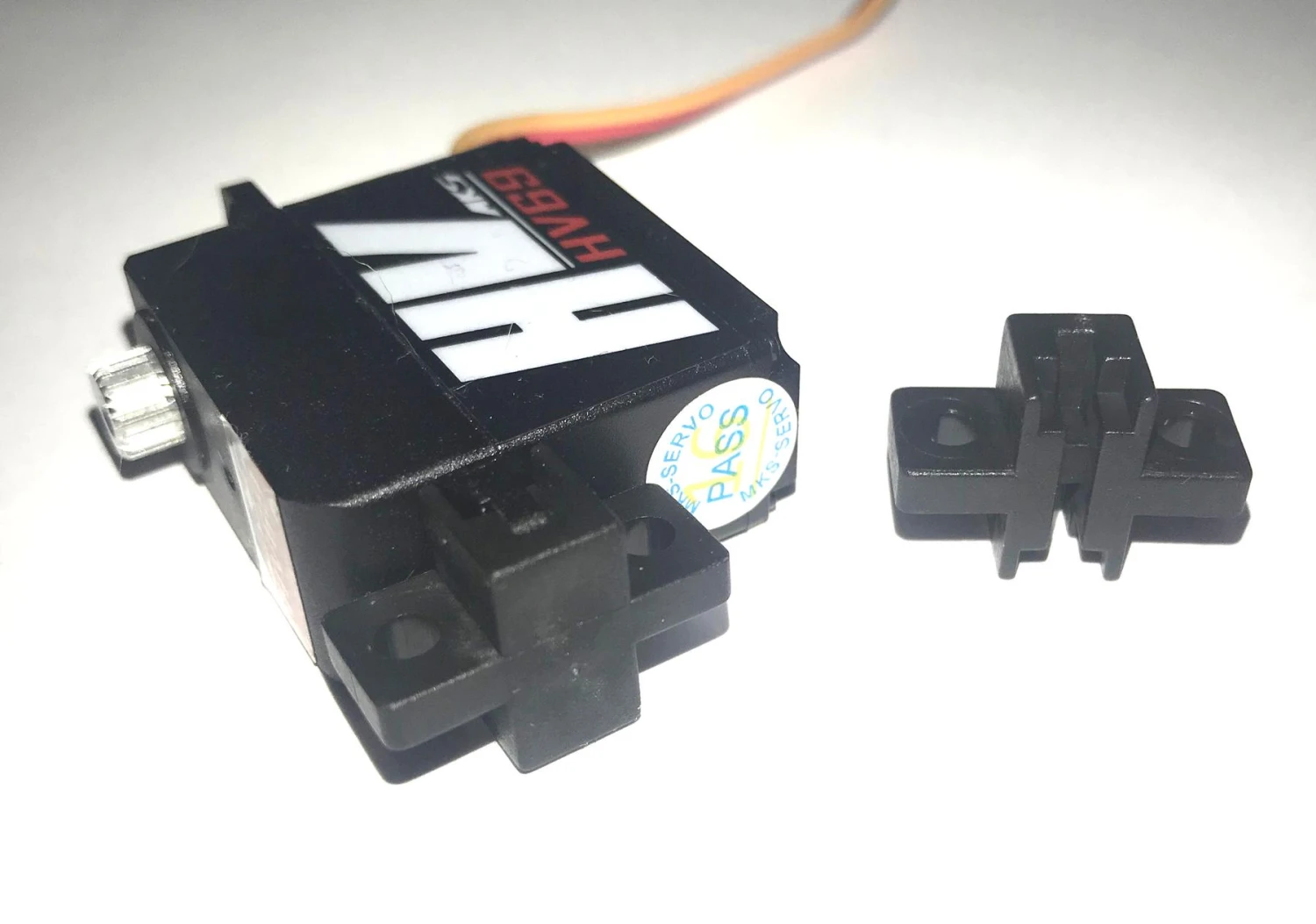

It is supplied with very useful wing mounting brackets which allow it to be mounted easily horizontally as a wing servo, in addition to conventional mounting.

MKS HV69 Servo Specifications

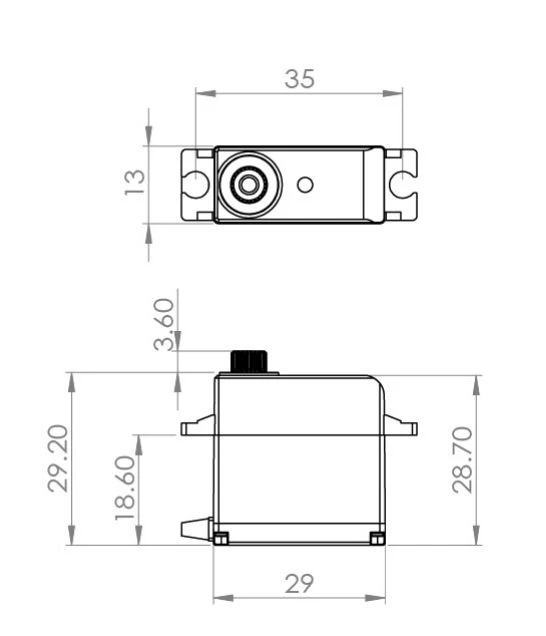

Body dimensions	29.0 mm wide x 13.0 mm thick x 29.0 mm high	1.14″ wide x 0.51″ thick x 1.14″ high
Max dimensions	40.0 mm wide x 13.0 mm thick x 34.0 mm high	1.57″ wide x 0.51″ thick x 1.34″ high
Stall torque (4.8V)	6 Kg.cm	83 oz.in
Stall torque (6V)	7.5 Kg.cm	104 oz.in
Stall torque (8.2V)	10.2 Kg.cm	142 oz.in
Weight	21 g	0.74 oz
Lead length	23 cm	9.1 in
Operating speed (4.8V)	0.17 sec/60°
Operating speed (6V)	0.13 sec/60°
Operating speed (8.2V)	0.1 sec/60°
Operating voltage	4.8V to 8.2V
Operating temperature	0 to 50 °C
Bearings	2 ball bearings
Gear material	Metal alloy
Case material	Nylon
Motor type	Coreless DC motor
Working frequency	333 Hz
Dead band/resolution	1 µs
Pulse width for ± 60º	(L) 920 µs – (0°) 1520 µs- (R) 2120 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	2 plastic output arms, 2 arm retaining screws, 2 soft mounting gromets, 2 wing mounting brackets
Optional accessories	MKS Short Metal Servo Output Arms, MKS Long Metal Servo Output Arms
