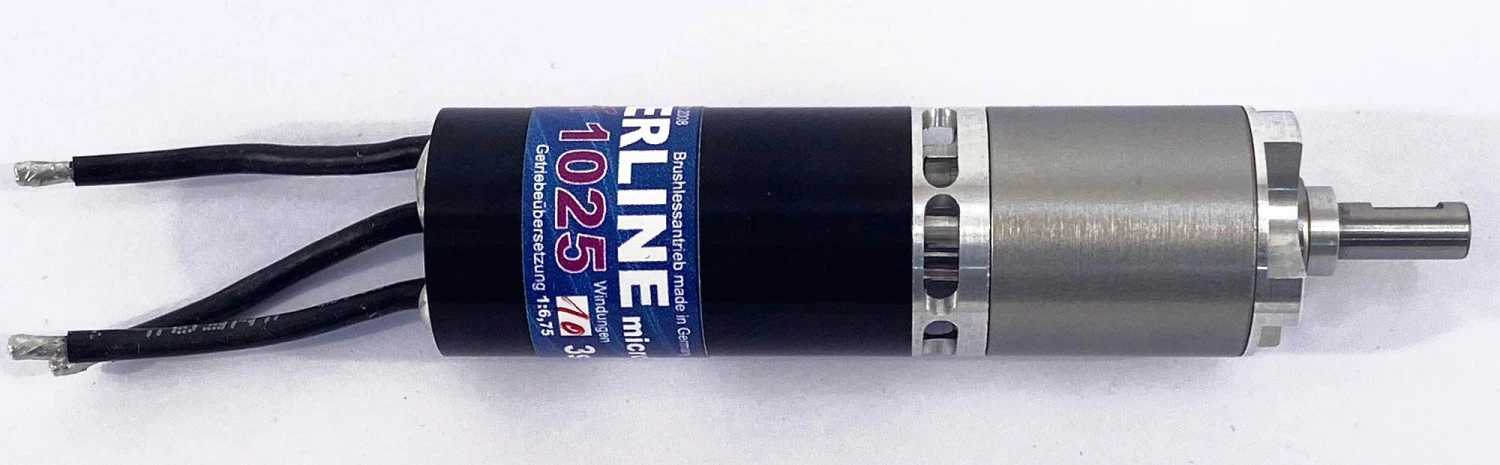

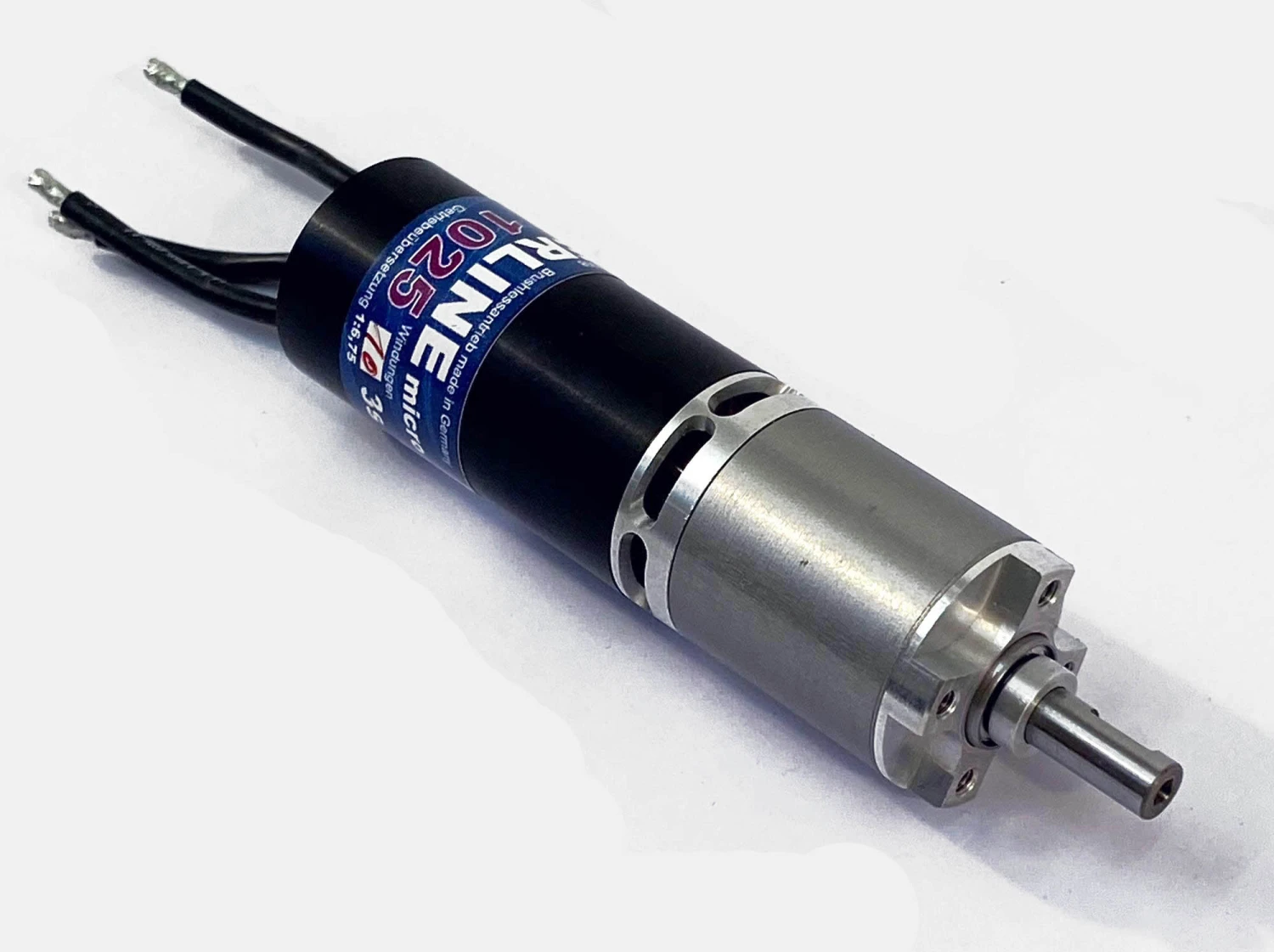

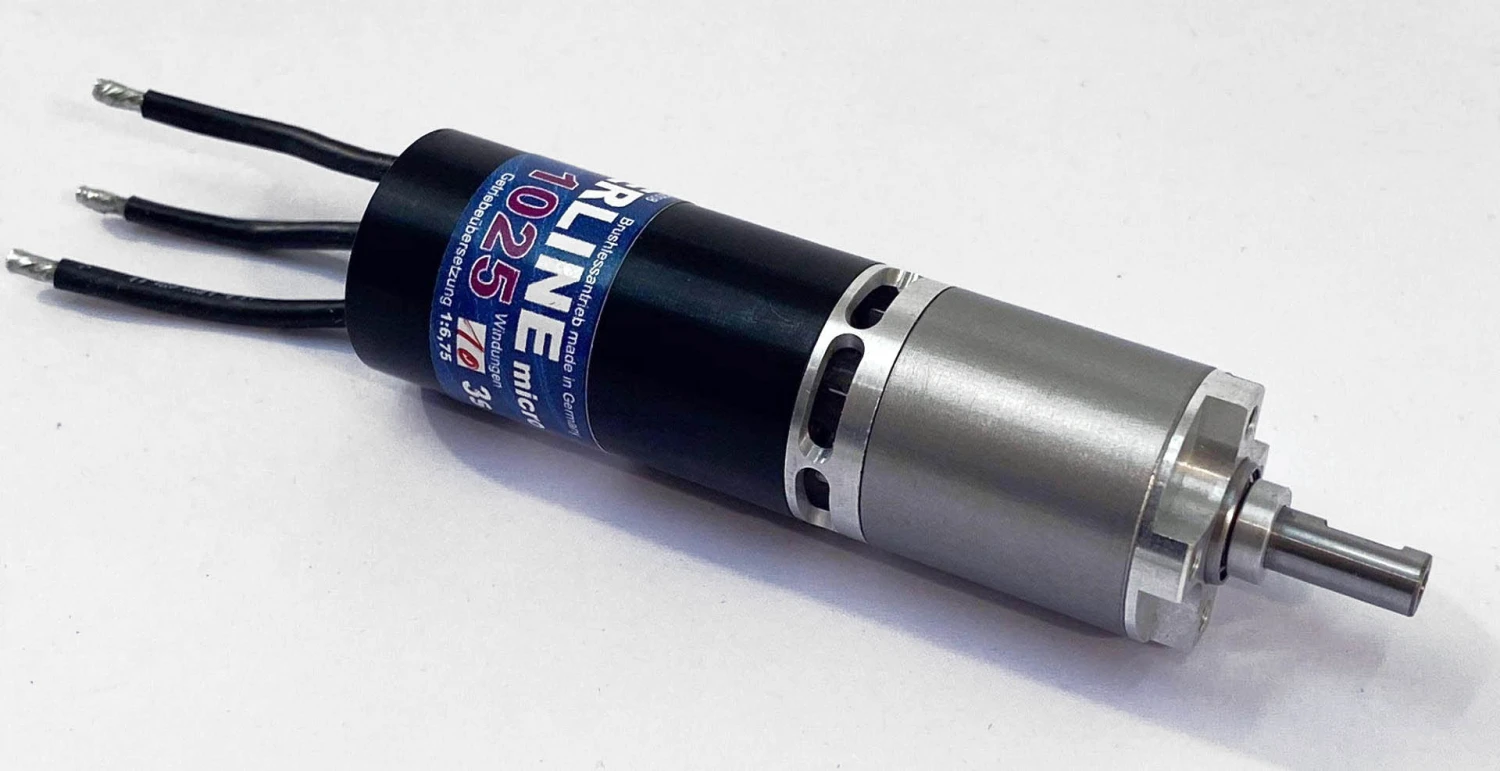

Powerline Micro 1025/10 102g

The Powerline Micro 1025/10 is the new 2020 Turbo version with Competition gearbox. It is good for 3S or 4S (with a smaller prop) LiPo power of optionally ballasted F5J models weighing up to 2400g. Max current 50A on a 3S LiPo with a max capacity 1600 mAh. The Powerline Micro 1025/10 Turbo has forced cooling allowing even higher power for a given weight of powertrain.

The new 2020 version is supplied with a stronger Competition gearbox that better handles the higher power this motor is cable of. This is coloured sliver-grey rather than black for the previous version.

This new Powerline Micro 1025/10 motor is specially designed for use on F5J models that have a ballast provision, and can get a heavy 2.4 Kg model to 200 m in 30 seconds even in windy conditions. It will of course be fine when the model is flown unballasted too. It is also perfect for converted F3J models which usually weigh more than modern F5J models.

Powerline Micro 1025/10
Suitable for gliders weighing	1300-2400 g max
Max power	500W
Max current	50A
Motor/gearbox weight	102 g
Length	75 mm
Diameter	22 mm
Mounting pitch circle diameter	17 mm
Shaft diameter	5 mm
Gearbox ratio	6.75:1
Winds	10
Recommended ESC	YGE 65 LVT
Recommended 3S propeller	GM 16×8, RF 16×8, RF 16×8.5
Recommended 4S propeller	GM 14×10, GM 14x9F, GM 14x8F
Recommended battery	Lipo up to 1600 mAh

Powerline Micro 1025/20 Turbo 2020 Weights
Powerline Micro 1025 Turbo	102 g
Propeller RF 16 x 8.5	12 g
Spinner RF 30 mm	13 g
Lipo 3s 1000 40C	98 g
ESC YGE 60	38 g
Plugs and screws	5 g
Total weight	268 g
